Product descripation:

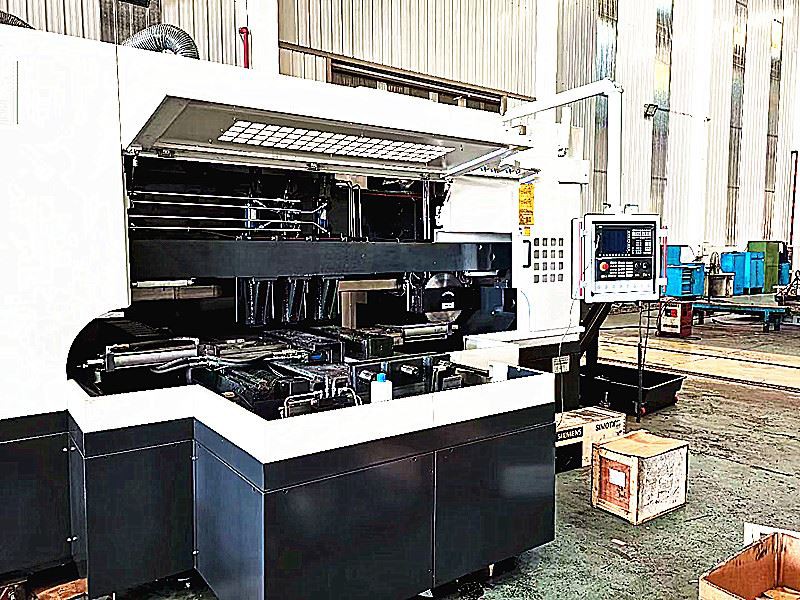

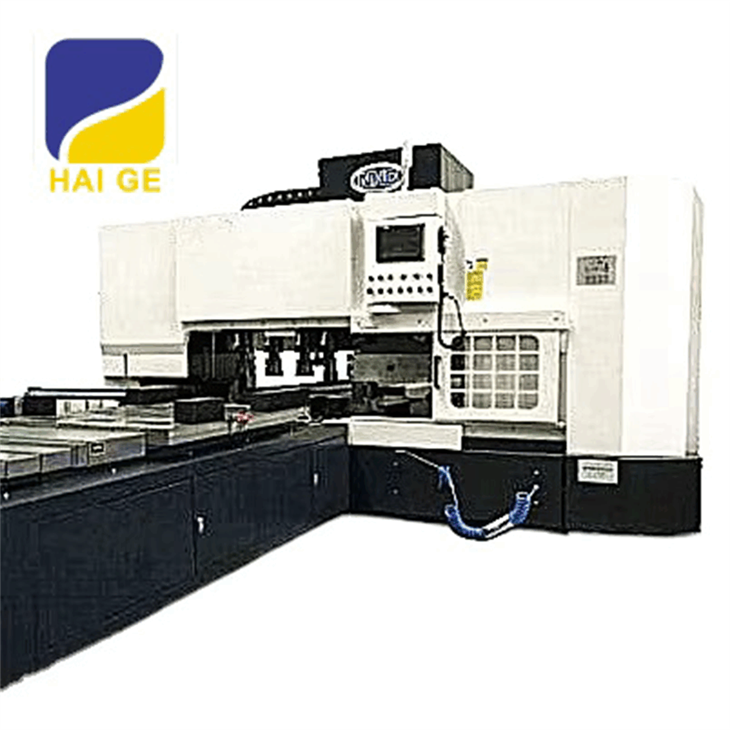

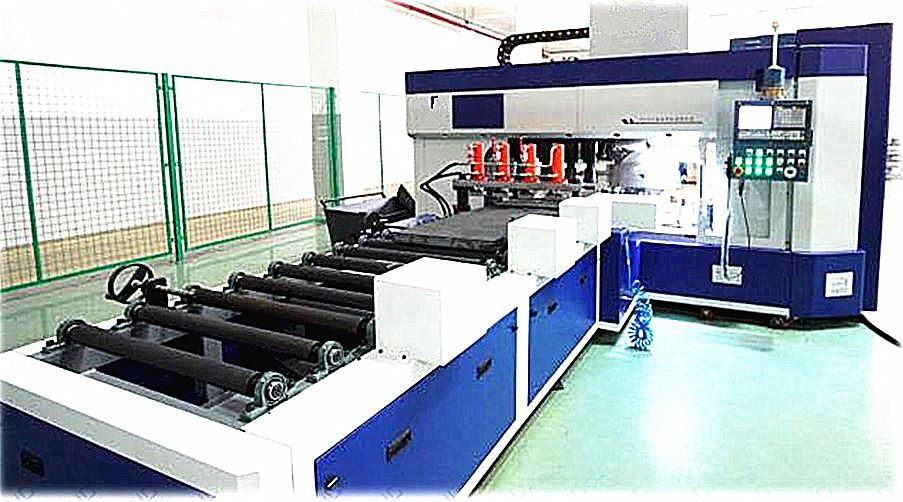

CNC Steel Plate Sawing and Milling Machines are currently in a monopoly state by foreign countries, and in China it is still in the early stage of research and development. our factory dared to be the first, and lasted for five years, overcame many difficulties, took the lead in the development of CNC Steel Plate Sawing and Milling Machine, filled the gap of high-efficient precise sawing and milling by circular sawing machine in China, and its performance reached the international advanced level. The machines can be widely used in metallurgy, machinery, mold making and other industries. Compared with traditional band sawing machines, the circular sawing machines have the features such as fast sawing speed, high accuracy and excellent cutting surface. The steel plate cutting process is clamped synchronously in the vertical direction and the cutting direction. The special design ensures positioning accuracy and cutting stability and reliability. The machine tool adopts oil spray micro-lubrication cooling method, which is clean and of pro-environment. Due to the edge of the tool, the cutting surface has the milling result. The machines consist of two parts, one is cutting motion and feeding motion by the circular saw blade, the other is feeding and discharging motion of the steel plate. The movement uses a numerical control system to control the servo motor to achieve stepless speed change. Adjust cutting speed and feeding speed as per the property and thickness of the cutting materials; adjust the length optionally as per cutting requirement. The precision of the machining products are high and the flatness, perpendicularity and roughness of the sawing surface are good. The machines adopt a fixed-beam type gantry frame structure to facilitate the feeding and discharging of the steel plate. The cutting length of the steel plate is not limited by the machine structure.
2. اہم خصوصیات:
Mainly used for flat bar cutting. Features： >The main structural parts are made of high-grade castings, and the machine tool has good rigidity; >The guide rail adopts a rolling-sliding composite structure, and the machine tool runs smoothly; >The creative design of the gear box ensures zero clearance of the main shaft output and prolongs the service life of the circular saw blade; >Both feeding and cutting feed are controlled by servo motor and CNC system to ensure the precision of sawing length; >ورک پیس کلیمپنگ اوپری دبانے اور سائیڈ کلیمپنگ کو دو- سمت میں اپناتی ہے، اور کلیمپنگ محفوظ اور محفوظ ہے۔
3. تفصیلات کی ساخت:
تفصیلات:

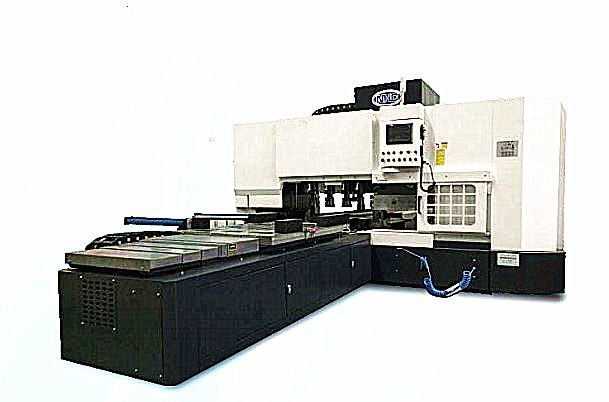

HGKL810 مین پیرامیٹرز:
HG810 | |||
بلیڈ کا سائز: | Φ425 | فیڈ موڈ: | سروو ڈرائیو |
کٹوتی کی حد: | W: 100-800 x T: 20-100 ملی میٹر | آگے اور پیچھے کی شرح: | 10 میٹر / منٹ |
کاٹنے کی لمبائی: | 20 ملی میٹر سے زیادہ یا اس کے برابر | فیڈ سپیڈ: | 100-400 ملی میٹر/منٹ، سٹیپلیس اسپیڈ چینج |
Plate Length : | سے کم یا اس کے برابر2300 ملی میٹر | مین شافٹ پریسجن: | 0.005-0.01 ملی میٹر |
Clamp Mode : | افقی اور عمودی | Cool Mode : | آئل اور مسٹ سپرے کولنگ |
سپنڈل کی رفتار: | 50-120 r/منٹ، سٹیپلیس اسپیڈ چینج | ایک بار فیڈ کی لمبائی: | سے کم یا اس کے برابر1300 ملی میٹر ری سائیکل شدہ فیڈنگ |
سپنڈل موٹر پاور: | 18.5 kW | ایئر کمپریشن: | 0.5-0.6 MPa |
کٹ فیڈ موٹر پاور: | 4.7 کلو واٹ | چپ ہٹانے کا طریقہ: | خودکار/ چین پلیٹ |
فیڈ موٹر پاور: | 3.0 kW
| ڈسچارج موڈ: | خودکار |
کٹ سائیڈ کی کھردری | Ra 6.3 سے کم یا اس کے برابر | گردش: | سنگل، متعدد |
کاٹ سائیڈ کھڑا ہونا: | اس سے کم یا اس کے برابر 0.3 ملی میٹر / 100 ملی میٹر | مشین کا وزن: | 15 T |
کٹ سائیڈ کی سیدھی ہونا: | 0 سے کم یا اس کے برابر۔15 ملی میٹر /800 ملی میٹر | مشین کا طول و عرض: | 7000 x 5000 x 2600 ملی میٹر |
برداشت میں کمی: | ±0.3 mm | ||
5. پیکنگ اور ترسیل:
ہمارے پاس نقل و حمل کی پیکیجنگ برآمد کرنے کا کافی تجربہ ہے۔ متعدد حفاظتی اقدامات کرنا:
6. کمپنی پروفائل:
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
7. کسٹمر کا دورہ:
8. نمائش:
9. سرٹیفکیٹ:
10. کسٹمر سروس:
112 ماہ کے لیے مفت کوالٹی گارنٹی کی مدت، سوائے پہننے کے پرزوں کے۔
5. اگر ہمارے گاہک کی ضرورت ہو تو ہمارے انجینئر بیرون ملک خدمات پیش کر سکتے ہیں، بشمول گائیڈنگ انسٹالیشن، کمیشننگ، ٹریننگ وغیرہ۔
11. اکثر پوچھے گئے سوالات:
1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed.2. Do you have any MOQ limit? Yes it depends on the products' size and production process.3. What's your payment method? Paypal, T/T, L/C, Western Unions, are available.
